SLS 3D Printing Technology: The Future of Industrial Manufacturing

May 12, 2024

With the rapid advancement of technology, Selective Laser Sintering (SLS) 3D printing is fast becoming a revolutionary advancement in industrial manufacturing.SLS technology provides a highly efficient platform for rapid prototyping and direct digital fabrication by using high-power lasers to melt polymer powders to build complex three-dimensional objects layer by layer. This additive manufacturing process not only speeds up product development cycles, but also reduces production costs, making it particularly suitable for personalised and low-volume production.See here what you have to know more about: the best SLS 3D printers

The advantage of SLS printing technology is its high degree of design freedom, which enables the printing of complex geometries that are difficult to achieve with conventional manufacturing techniques. In addition, SLS-printed parts exhibit mechanical properties comparable to those of injection moulding, which has led to a wide range of applications in the automotive, aerospace, medical and consumer goods industries. With the development of new materials and improved cost-effectiveness, SLS printing is emerging as the technology of choice for customised products and low-volume production.

However, SLS technology also faces challenges, including limitations in printing materials, post-processing complexity, and equipment costs. To overcome these obstacles, researchers and engineers are continually exploring new materials and processes to improve the efficiency and economics of SLS printing. As the technology matures and the market expands, SLS 3D printing is expected to play an even more important role in future industrial manufacturing.

What is SLS technology? What is its importance in modern manufacturing?

Overview of SLS (Selective Laser Sintering) Technology

Selective Laser Sintering (SLS) is a revolutionary 3D printing technology that brings a whole new dimension to fine fabrication by means of Powder Bed Fusion, the core of which is the use of a high-powered laser beam to selectively melt powdered materials, layer by layer, in accordance with the digitised instructions of a 3D model, in order to construct three-dimensional objects. Powdered materials are selectively melted layer by layer in accordance with the digitised instructions of the 3D model, thus constructing a 3D object.

The strength of this technology lies in its high degree of inclusiveness of design complexity, allowing for the creation of complex geometries that would be difficult to achieve with traditional manufacturing methods.SLS-printed parts can be not only structurally very complex, but also excellent in terms of material properties, which has led to a wide range of applications in industries such as aerospace, medical, automotive and consumer goods.

The powder bed melting process involves a laser beam scanning across the powder bed, melting specific areas of powder to form a solid layer of material. As the build platform descends layer by layer, a new layer of powder is spread on top of the already cured layer, and the laser continues to melt the new powder, bonding it to the already cured layer below. This process is repeated until the entire 3D model is built in its entirety.

SLS technology not only improves manufacturing efficiency, but also provides great freedom for product development and innovative design. In addition, since the SLS printing process does not require a large number of support structures, it can also help manufacturers save on material and post-processing time, further reducing production costs.

Overall, SLS technology, as an important branch in the field of 3D printing, is constantly driving manufacturing towards greater personalisation, efficiency and innovation.

The importance of SLS technology in modern manufacturing:

  1. Rapid prototyping: SLS technology enables rapid manufacturing of functional prototypes, accelerating the product development and design verification process.
  2. customised production: SLS printing supports small batch customised production to meet the needs of the individual market, especially for customised medical devices and personalised consumer products.
  3. Complex parts manufacturing: SLS technology is able to manufacture complex parts that are difficult or costly to produce with traditional manufacturing techniques, such as lightweight, structurally complex parts in the aerospace industry.
  4. Improve production efficiency: SLS printing can reduce material waste in the manufacturing process, shorten the production cycle and improve production efficiency.
  5. Driving innovation: The design flexibility of SLS technology stimulates the innovative potential of designers and engineers, driving the development of new materials and new design methods.
  6. Sustainability: The digital nature of SLS printing reduces reliance on traditional moulds, reduces energy consumption and material waste, and is in line with the trend towards sustainable development.
  7. Cross-industry applications: SLS technology is used in a wide range of industries including automotive, medical, aerospace, military, consumer goods and industrial design.

SLS technology occupies an important position in modern manufacturing due to its unique advantages in complex part manufacturing, rapid prototyping and customised production, and its scope of application and influence is expected to expand further as the technology continues to advance.

What are the common SLS 3D printing materials?

SLS (Selective Laser Sintering) 3D printing technology is known for its ability to work with a wide range of materials, which makes it useful in different industrial applications. Here are some common SLS 3D printing materials:

  1. nylon (Polyamides, PA)
    Such as PA12, PA11 and PA123, these were the first materials used for SLS printing and have good mechanical properties and chemical resistance.
  2. Polycarbonate (PC)
       Popular for its excellent transparency and high temperature resistance.
  3. Thermoplastic Polyurethane (TPU)
       Used in applications requiring flexibility and elasticity, such as cushions and seals.
  4. Polyphenylene Sulfide (PPS)
       Very high heat and chemical resistance for demanding applications.
  5. Polyimide (PI)
       Used in aerospace applications for its high temperature stability and excellent mechanical properties.
  6. ABS (Acrylonitrile Butadiene Styrene)
       A general-purpose plastic with good thermal and mechanical properties.

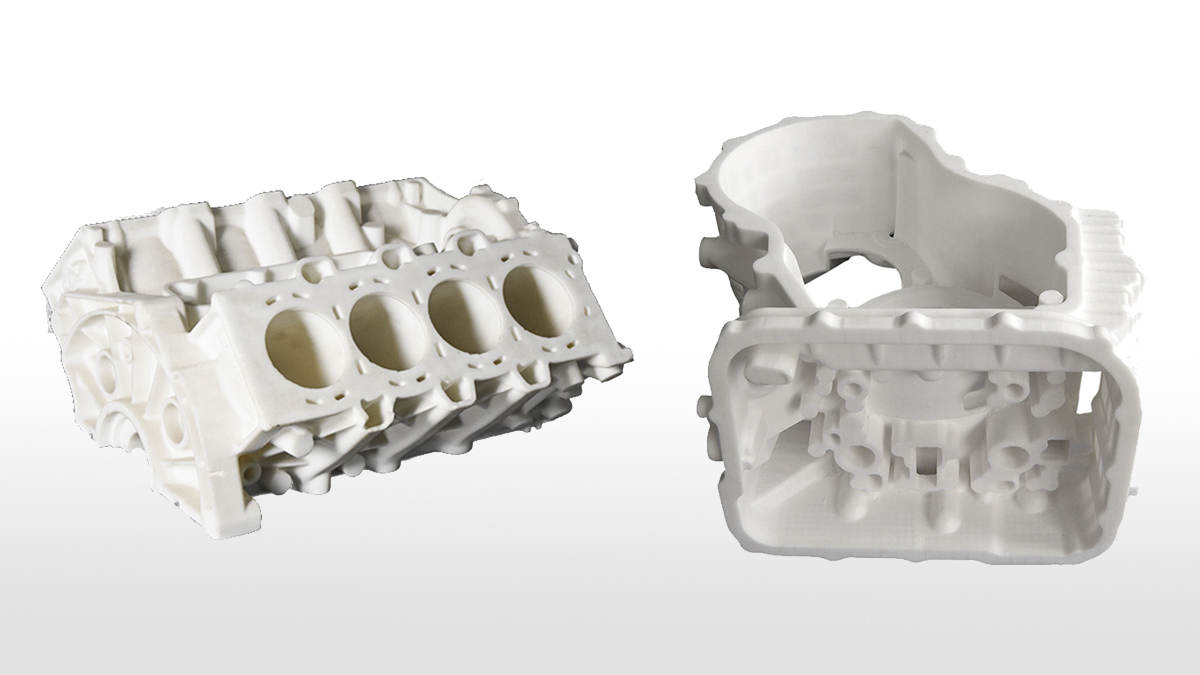

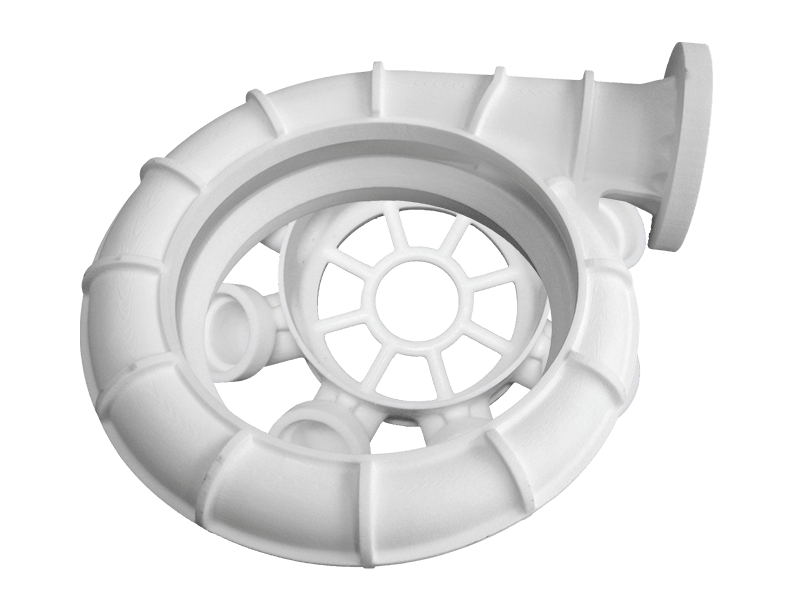

  7. wax for investment casting (lost wax casting)
    Wax moulds for precision casting which can be melted and replaced by metal.
  8. Ceramic materials
    Used in the manufacture of parts that are resistant to heat and wear, such as kiln furniture and certain types of cutting tools.
  9. Metal powders
    Such as stainless steel, titanium alloys, aluminium and cobalt-chromium alloys, used to print metal parts with high strength and durability.
  10. composite materials
    Combine the advantages of several materials, such as carbon fibre reinforced nylon, to provide better mechanical and thermal properties.
  11. degradable materials:
    Such as PLA (polylactic acid), used to make biodegradable parts and products.
  12. transparent materials
    Used to make transparent functional parts or decorative items.
  13. quartz sand
    Due to its good refractoriness and chemical stability, quartz sand is one of the commonly used materials in SLS printing.
  14. Zircon sand
    Zirconium sand has a high melting point and good abrasion resistance, which is suitable for the manufacture of sand patterns for precision casting.
  15. Chromite sand
    Chromite sand has good refractory properties and is suitable for high temperature casting applications.
  16. Silica Sand
    Silica sand is a lower cost option for some casting applications.
  17. Ceramic Sand
    Ceramic sand has excellent heat resistance and chemical stability and is suitable for high performance casting moulds.
  18. Special Sand Mixtures
    Depending on the needs of a particular application, special sand blends may be used, which may contain specific binders or other additives to improve printing performance.

The choice of material for SLS 3D printing depends on the application needs of the final part, such as desired mechanical properties, temperature resistance, durability, cost and processing requirements. As 3D printing technology continues to advance, more novel materials are being developed and tested to meet a wider range of industrial needs.

SLS 3D printing application case studies

SLS 3D printing technology has a wide range of applications in several industries due to its flexibility and high accuracy. The following are examples of applications of SLS 3D printing technology in the aerospace, medical, automotive and consumer goods industries:

Aerospace

Case: Manufacturing of complex parts for aircraft

Application: Manufacture of aircraft internal structural parts, lightweight brackets and complex piping systems using SLS printing technology.

Benefits: Reduced weight, shorter production cycles, increased design freedom, and helps improve aircraft fuel efficiency and performance.

Medical

Case: Customised medical devices and human implants

Applications: Customised prosthetics, orthotics, cranial implants and personalised teeth.

Benefits: Provides medical devices that perfectly match the patient’s body structure, improving comfort and functionality.

Case: Anatomical Models

Application: Printing accurate models of human organs based on CT scan data for medical research and surgical planning.

Advantage: Helps doctors to better understand the condition and improve the success rate of surgery.

Automotive

Case: Rapid Prototyping of Automotive Parts

Application: Rapid prototyping of automotive components such as brake systems, engine parts and complex internal structures.

Advantage: Shorten design validation time, accelerate product iteration, and reduce R&D costs.

Case: Customised automotive interiors

Application: Providing customised interior components such as personalised door panels, seats and control panels for the high-end automotive market.

Advantage: Meet consumer demand for personalisation and luxury experience.

Consumer Goods

Case: Customised footwear

Application: Using SLS printing technology to create customised shoe midsoles and insoles that provide better comfort and support.

Benefits: Provide consumers with unique and customised products and increase brand loyalty.

Case: Prototyping high-end consumer goods

Application: Manufacturing prototypes for high-end consumer goods such as jewellery, watches and cosmetic packaging.

Benefits: Rapid prototyping, enabling designers to quickly test designs and respond to market changes.

Through these case studies, we can see how SLS 3D printing technology is helping to improve efficiency, reduce costs and drive innovation across a wide range of industries. As the technology continues to advance, the range of applications for SLS printing is expected to expand further.

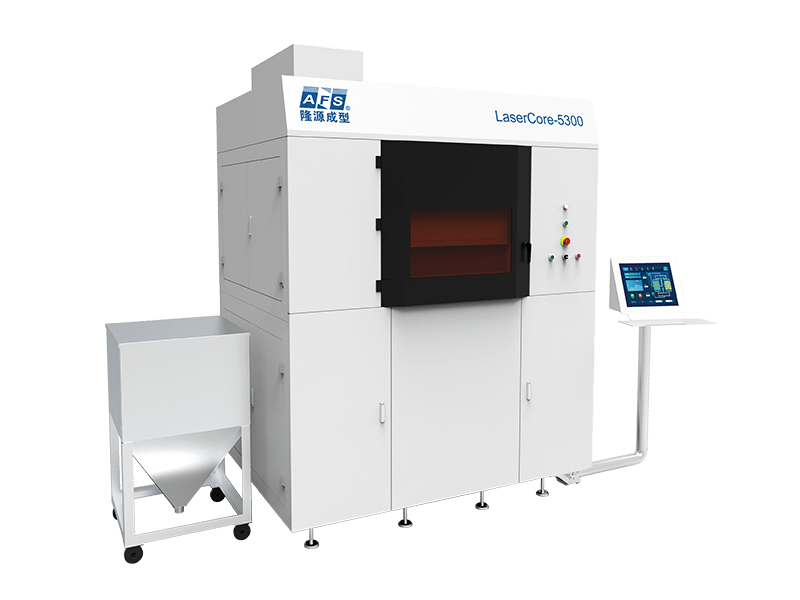

SLS Printer Buying Guide

When it comes to purchasing an SLS (Selective Laser Sintering) printer, there are a variety of brands and models on the market to choose from. Each printer has its own specific features, benefits, and areas of application. Below are some key factors for comparing SLS printers, as well as keywords to consider when providing buying advice:

Key factors in comparing SLS printers:

1. Print size:

Different models of SLS printers offer different print volumes. Choose the right print size for your part size and mass production needs.

2. Print Resolution:

Resolution affects the detail of the printed part. Industrial 3D printing usually requires a high resolution to ensure part quality.

3. material compatibility:

Check if the printer supports the type of material you need, such as nylon, TPU, ceramic or metal powder.

4. build speed:

Industrial-grade 3D printing requires fast builds to increase productivity.

5. mechanical stability and reliability:

Industrial applications require printers with high stability and low failure rates.

6. post-processing capabilities:

Some SLS printers may include or be compatible with automated post-processing systems to streamline the production process.

7. software and user interface:

 User-friendly interfaces and powerful slicing software can improve ease of operation and print success.

8. cost effectiveness:

Consider the acquisition cost of the printer, operating costs (including material and energy consumption), and maintenance costs.

9. Brand reputation and service:

Choose a reputable brand to ensure good customer service and technical support.

Purchase recommendations:

1. Determine needs:

Define your production needs, including part size, complexity, material requirements and production volume.

2. Technical specifications:

Compare the technical specifications of different brands and models of SLS printers to ensure they meet your production needs.

3. Budget:

Determine your budget and consider long-term operating costs.

4. brand comparison:

Research the market reputation of different brands, read customer reviews and case studies.

5. after-sales service:

Find out about the quality of the manufacturer’s after-sales service, including warranty policies, technical support and spare parts availability.

6. Trial and demo:

If possible, ask to try out the printer or visit a demo to get a better understanding of its performance.

7. training and support:

Ensure that the manufacturer provides the necessary training and ongoing technical support.

8. expandability:

Consider the scalability of the printer to accommodate future growth in production needs.

9. environmental impact:

Evaluate the environmental impact of the printer, including energy efficiency and material recyclability.

By taking all of these factors into consideration, you can make an informed decision about which SLS printer is best suited for your specific needs. Remember, the best choice depends not only on the technical specifications of the printer, but also on the quality of the manufacturer’s service and the overall cost-effectiveness of the printer.

Click on SLS 3d Printers to learn about the various models of SLS 3D printing equipment.

Cost-Benefit Analysis of SLS Printing

  The cost-benefit analysis of SLS (Selective Laser Sintering) printing requires consideration of several factors, including material costs, machine depreciation, labour, energy consumption, post-processing, and application-specific economics. Below is an analysis of the cost structure of SLS printing and its economic considerations for different applications:

Analysis of cost structure:

1. Material Costs:

Materials used for SLS printing are typically more expensive, especially metals and high-performance polymers. Material costs vary depending on the size and complexity of the part being printed.

2. Machine depreciation:

SLS printers have a high acquisition cost, but they usually have a long service life. Machine depreciation is a significant part of the total cost.

3. Labour costs:

The higher degree of automation in SLS printing reduces labour costs compared to traditional manufacturing that requires a lot of manual work.

4.Energy Consumption:

Energy consumption during SLS printing is relatively high, but energy costs per part can be reduced by optimising printing parameters and mass production.

5. Post-processing costs:

After printing, the part needs to have excess powder removed and may require heat or surface treatment, all of which incur additional costs.

6. Design and development:

Printing with SLS may require new design concepts and software tools, which may incur initial design and development costs.

7. Maintenance and repair:

High-end SLS printers require regular maintenance and occasional repairs, which are also part of the cost.

Return on Investment (ROI):

1. rapid prototyping:

SLS printing enables rapid prototyping and shortens product development cycles, resulting in faster time-to-market and improved market responsiveness.

2.Small batch production:

For small batch production, SLS printing avoids the high cost of traditional mould manufacturing and provides better cost-effectiveness.

3.Customised production:

SLS printing supports customised production, which can meet the market demand for personalised products and increase the added value of products.

4.Reduced Inventory:

On-demand production reduces inventory costs and the storage and maintenance costs associated with it.

5. Increased production flexibility:

SLS printing increases production flexibility and allows for quick adaptation to market changes and customer needs.

Economics in different applications:

1. aerospace:

In aerospace, SLS printing is used to create lightweight, high-strength parts that can significantly reduce the weight of the vehicle and improve fuel efficiency.

2. medical:

In the medical field, SLS printing is used for customised medical devices and human implants, which improves treatment success and patient satisfaction despite higher material costs.

3.Automotive:

In the automotive sector, SLS printing is used to manufacture complex functional parts and customised interiors, improving vehicle performance and personalisation.

4. consumer products:

For the consumer goods industry, SLS printing allows for rapid response to market changes, manufacturing customised and low-volume products, and improving market competitiveness.

Conclusion:

The cost-effectiveness of SLS printing depends on the specific application scenario and production requirements. Although the initial investment and material costs are high, the advantages of SLS printing in terms of design flexibility, rapid prototyping, small batch production and customised production can bring significant economic benefits. The cost-effectiveness of SLS printing is expected to increase further as the technology advances and large-scale production is realised.

SLS Printing Challenges and Solutions

SLS (selective laser sintering) printing technology, while offering numerous advantages, also faces a number of challenges. The following are some of the current challenges facing SLS printing and possible solutions:

1. Surface finish issues: The surface of parts printed by SLS may be rough and require subsequent surface preparation steps to improve appearance.

Solution: Develop new SLS printing materials and processes to improve surface finish; at the same time, utilise subsequent surface treatment techniques, such as mechanical polishing and chemical treatment, to enhance the appearance of the final product.

2. High cost problem: The high cost of SLS printers and materials, and the need for specialised operators and maintenance, limit their application in small manufacturing and research facilities.

Solution: Reduce equipment and material costs through technological innovation and large-scale production; provide operator training and maintenance services to reduce specialised skill requirements, thereby reducing overall costs.

3. Material Limitations: Although SLS technology can use a wide range of materials, SLS still has some limitations on material selection compared to other 3D printing technologies.

Solution: Research and develop new SLS-compatible materials to expand the range of available materials; at the same time, improve the performance of existing materials to enable them to meet a wider range of application requirements.

4. Post-processing complexity: After SLS printing is complete, complex post-processing steps are required, such as removing unsintered powder, which increases the complexity and cost of the manufacturing process.

Solution: Develop more efficient post-processing technologies and equipment to simplify and accelerate the process; explore automated post-processing solutions to reduce manual intervention.

5. Equipment and working environment requirements: SLS printing equipment is expensive and the working environment is demanding, such as the need for preheating and dust protection measures.

Solution: Design more economical and compact SLS printers to suit production environments of different sizes; improve equipment design to reduce reliance on special working environments.

6. Legal and Regulatory Challenges: Emerging technologies may face legal issues such as IPR and patent infringement.

Solutions: Strengthen awareness of intellectual property protection and ensure that all technologies and materials used are in compliance with relevant laws and regulations; work with legal experts to develop response strategies.

7. Technology Popularisation and Education: SLS technology is not yet widely understood and applied by all potential users.

Solution: Raise awareness of SLS technology through education and training; provide easy-to-understand resources and case studies to demonstrate the advantages and applications of SLS technology.

8. Environmental and Health Concerns: The SLS printing process can generate dust and other hazardous substances, posing potential risks to operator health and the environment.

Solution: Improve the sealing and ventilation systems of printers to reduce the emission of dust and harmful gases; provide appropriate safety training and personal protective equipment.

With these solutions, the challenges faced by SLS printing technology can be gradually overcome and its development in a wider range of applications advanced.

As an advanced 3D printing technology, the future development trend and potential impact of selective laser sintering (SLS) printing technology can be predicted in the following aspects:

1. Technological advances: SLS technology will make more progress in the development of new materials as research progresses. This includes improvements in metal, plastic and ceramic powders, as well as the development of possible new powder materials that will improve the mechanical properties, precision and functionality of SLS printed parts.

2. Industry trends: SLS printing technology is expected to find wider application in industries such as automotive, aerospace, medical and consumer goods. Especially, SLS technology will play an important role in areas that require complex geometries and personalisation.

3. Market Forecast: According to the market study, the SLS printing market is expected to grow at a steady rate, with Asia Pacific likely to be the fastest growing market. As the technology matures and costs decrease, SLS printing technology is expected to achieve wider market penetration.

4. Application innovation: SLS technology offers significant advantages in rapid prototyping, low-volume production, and customised product manufacturing. In the future, SLS printing technology may drive the development of personalised manufacturing and on-demand production models.

5. Environmental impact: SLS printing technology has a low environmental impact due to its high material utilisation rate and recyclability of unsintered powder. With the global emphasis on sustainable development and environmental protection, SLS technology may become a more environmentally friendly option in manufacturing.

6. Intellectual property challenges: As the technology becomes more widespread, SLS printing may challenge traditional intellectual property protection mechanisms. This may require updates to the legal and regulatory framework to accommodate the changes brought about by the new technology.

7. Education and training needs: As SLS technology becomes more widespread, the demand for related technical knowledge and operational skills will increase. This is likely to boost the education and vocational training sector to meet the market demand for SLS technology professionals.

8. Investments and collaborations: Key players in the market, such as 3D Systems Corporation, EOS GmbH, and others, are likely to expand their market share through collaborations, mergers, acquisitions, and investments. This will drive innovation in SLS technology and expansion of industry applications.

9. Cost-effectiveness: With the maturity of the technology and the realisation of large-scale production, the cost of SLS printing is expected to decrease further, making the technology more economically attractive for a wider range of application scenarios.

10. International standardisation: In order to promote the healthy development of the global market, more efforts are likely to be invested in the development of international standards to regulate the application and product quality of SLS printing technology.

In summary, the future development potential of SLS printing technology is huge, and it is expected to drive innovation and development in manufacturing in a number of areas. However, the process also needs to address challenges including technical, market, legal and environmental aspects.

Frequently Asked Questions (FAQ) about SLS 3D Printing

The following are Frequently Asked Questions (FAQ) about Selective Laser Sintering (SLS) 3D printing technology:

1. How does SLS 3D printing work?

In SLS 3D printing, a laser selectively sinter polymer powder particles, fusing them together to build the part layer by layer. The process includes steps such as preparing the machine, dispersing the powder, laser sintering, building layer by layer, cooling and unpacking, and post-processing.

2. Can SLS 3D printing be used for rapid prototyping?

Yes, SLS is an excellent solution for rapid prototyping of functional polymers because it offers a high degree of design flexibility and accuracy, producing models that are nearly identical in quality to the end-use part.

3. Can SLS 3D printing be used for low-volume production?

SLS 3D printing is versatile and can be used as an alternative to injection moulding in small batch production. It can produce parts with complex shapes and geometries, as well as a variety of surface finishes and lead times.

4. What materials are used in SLS 3D printing?

Materials used in SLS printing include granular thermoplastic polymers such as nylon (PA 12), polypropylene (PP) and thermoplastic polyurethane (TPU).

5. What are the advantages of SLS 3D printing?

Advantages of SLS printing include material versatility, design freedom, no tooling required, robust parts, mass production and part consolidation, functional prototyping and end-use parts.

6. What post-processing is required after SLS 3D printing is complete?

Post-processing steps after SLS printing is complete include powder removal, thermal degreasing, sintering, support removal, surface finish enhancement, and post-processing.

7. What are the application areas of SLS 3D printing?

SLS technology is used in a wide range of industries including automotive, aerospace, medical, manufacturing, consumer products, and art and fashion.

8. What is the cost of SLS 3D printing?

The cost per part for SLS 3D printing is typically low, making it particularly suitable for producing complex customised parts or small components for a range of end products. However, the initial investment for an industrial grade SLS printer is relatively high.

9. What is the quality of SLS 3D printed parts?

SLS-printed parts are known for their robustness and durability, comparable to parts produced using traditional methods such as injection moulding. Parts have excellent mechanical properties, including high strength and durability.

10. What are the future trends in SLS 3D printing technology?

SLS printing technology is expected to continue to evolve as a result of technological innovation and market demand, with the potential for more new materials, improved print speeds and quality, a wider range of applications, and more cost-effective solutions.

Ready for Action?

Contact us anytime for a quick quote.
LET'S GO!
Longyuan AFS Co., Ltd. is a leading provider of 3D printing equipment and manufacturing services in China, providing high-quality R&D pilot production and rapid manufacturing services for small-lot, multi-species and complex structure metal products based on the integrated technology of "3D printing, casting, machining and inspection".

  • Email: sales@lyafs.com
  • Phone:+86 13299265105
  • Add: No 7 Yudong Road, B Area, Tianzhu Konggang Industrial Park, Shunyi District, Beijing, China.
Index
